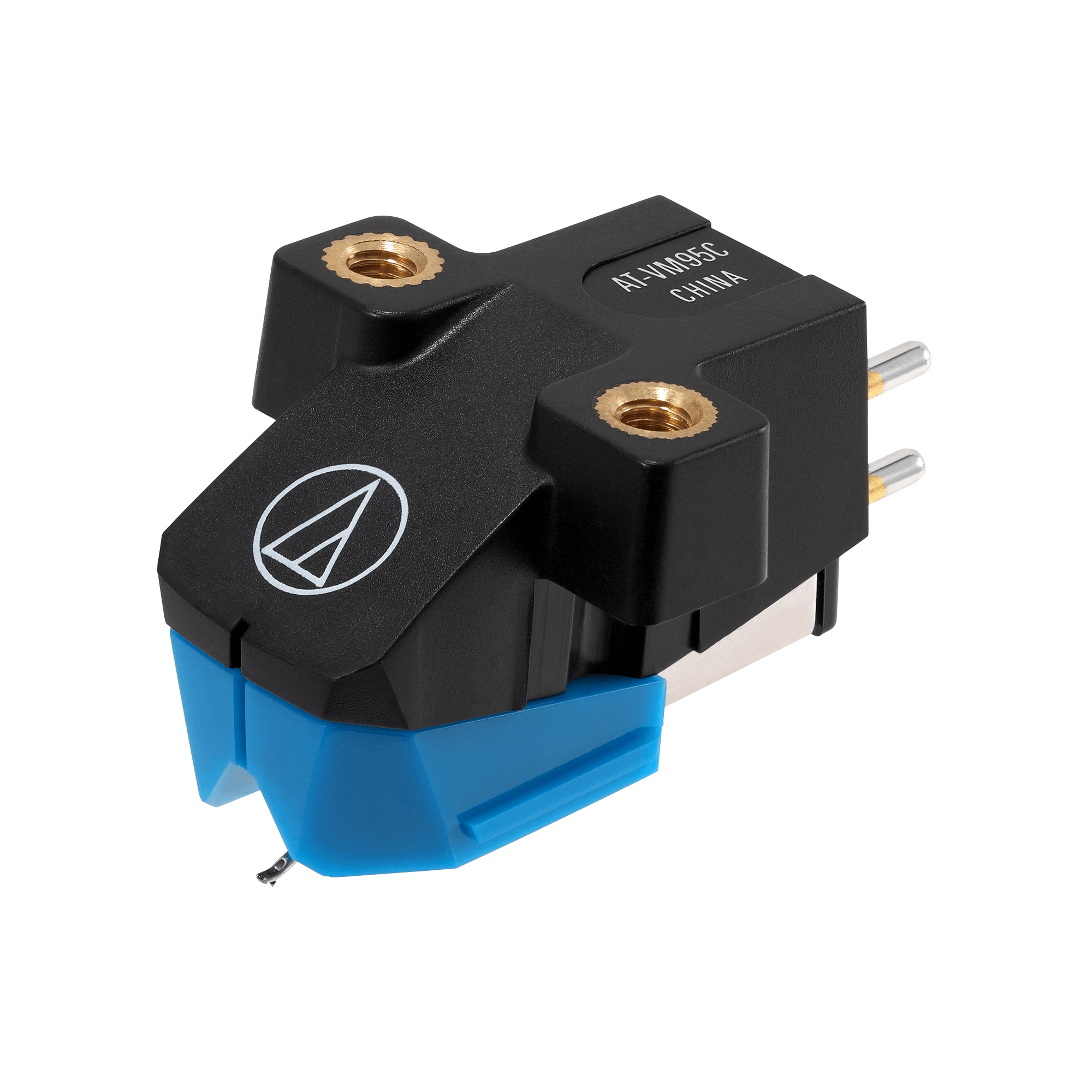

Audio Technica - AT-VM95C
Audio Technica - AT-VM95C
Turntable Cartridge & Stylus.
This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
SPECS :
Frequency Response:
20 - 20,000 Hz
Channel Separation
18dB (1kHz)
Vertical Tracking Angle :
23°
Vertical Tracking Force :
1.8 to 2.2g (2.0g standard)
Stylus Construction
Bonded Round Shank
Recommended Load Impedance
47,000 Ω
Coil Impedance :
3.3 kΩ (1 kHz)
DC Resistance
485 Ω
Coil Inductance :
550 mH (1 kHz)
Output Voltage
4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance :
2.5 dB (1 kHz)
Stylus Shape :
Conical
Cantilever :
Aluminum Pipe
Static Compliance :
17 x 10 – 6 cm / dyne
Dynamic Compliance :
6.5 x 10 – 6 cm / dyne (100 Hz)
Mounting :
1/2” centres
Cartridge Weight :
6.1g
Diamensions :
17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included :
Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Model :
AT-VM95C
Recommended Load Capacitance :
100-200 pF
Replacement Stylus :
AT-VMN95C
Stylus Size :
0.6 mil
Type :
VM Stereo Dual Magnet
Wire Used for Coil :
T.P. Copper
